TSD57045 - RF POWER TRANSISTORS The LdmoSTFAMILY

TSD57045 Description

® SD57045 RF POWER TRANSISTORS The LdmoST FAMILY ADVANCE DATA N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFETs ν ν ν ν EXCELLENT THERMAL STABILITY COMMON.
The SD57045 is a common source N-Channel Enhancement-Mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial ap.

TSD57045 Applications

* at frequencies up to 1.0 GHz. The SD57045 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for base stations applications requiring high linearity. PIN CONNECTION 1. Drain 2. Gate ABSOLUTE MAXIMUM RATINGS (Tcase = 25 oC) Symbol V (BR)DSS V DGR

📥 Download Datasheet

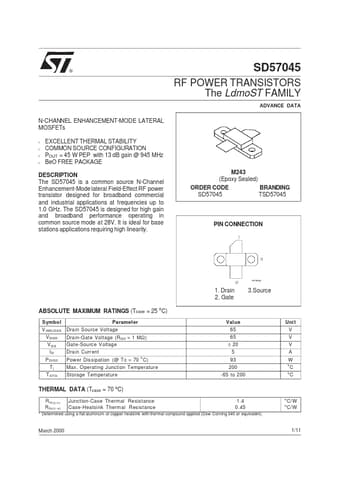

Preview of TSD57045 PDF
datasheet Preview Page 2 datasheet Preview Page 3
