VNS14NV04P-E, fully autoprotected Power MOSFET

VNS14NV04P-E "OMNIFET II" fully autoprotected Power MOSFET .
The VNS14NV04P-E is monolithic device made using STMicroelectronics™ VIPower™ M0 Technology, intended for replacement of standard Power MOSFETs in DC.

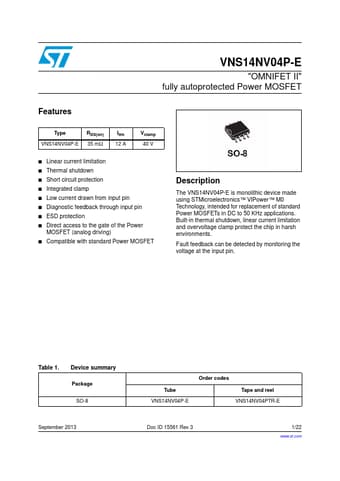

datasheet Preview Page 1 from Datasheet4u.com

VNS14NV04P-E-STMicroelectronics.pdf

VNS14NV04P-E Datasheet Preview — Preview of VNS14NV04P-E PDF

Datasheet Details

Part number:

VNS14NV04P-E

Manufacturer:

STMicroelectronics ↗

File Size:

626.75 KB

Description:

fully autoprotected Power MOSFET

Features

* Type VNS14NV04P-E RDS(on) 35 mΩ Ilim 12 A Vclamp 40 V
* Linear current limitation
* Thermal shutdown
* Short circuit protection
* Integrated clamp
* Low current drawn from input pin
* Diagnostic feedback through input pin
* ESD protection
* Direct access to the g

Applications

* Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin. Table 1. Device summary Package SO-8 September 2013 Tube VNS14NV04P-E Order codes Tape and reel VNS14NV04P
