VNS3NV04 Datasheet, Mosfet, STMicroelectronics

VNS3NV04 Features

  • Mosfet Type VNN3NV04 VNS3NV04 VND3NV04 VND3NV04-1 RDS(on) 120 mΩ Ilim 3.5 A Vclamp 40 V
  • Linear current limitation
  • Thermal shutdown
  • Short circuit protection <

PDF File Details

Part number:

VNS3NV04

Manufacturer:

STMicroelectronics ↗

File Size:

303.14kb

Download:

📄 Datasheet

Description:

Fully autoprotected power mosfet. The VNN3NV04, VNS3NV04, VND3NV04 VND3NV04-1, are monolithic devices designed in STMicroelectronics™ VIPower™ M0-3 Technology, intende

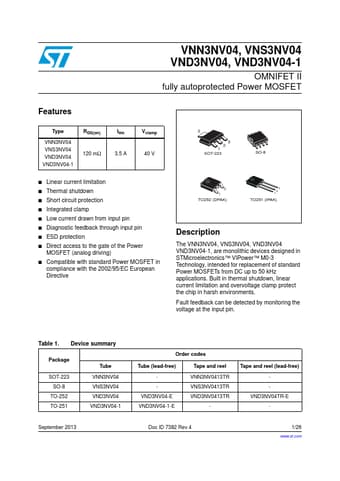

Datasheet Preview: VNS3NV04 📥 Download PDF (303.14kb)
Page 2 of VNS3NV04 Page 3 of VNS3NV04

VNS3NV04 Application

  • Applications Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can
