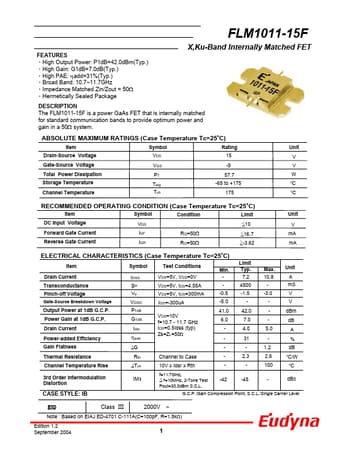

FLM1011-15F Datasheet, Fet, SUMITOMO

FLM1011-15F Features

• Fet High Output Power: P1dB=42.0dBm(Typ.) High Gain: G1dB=7.0dB(Typ.) High PAE: ηadd=31%(Typ.) Broad Band: 10.7~11.7GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package DESCRIPT

PDF File Details

Part number:

FLM1011-15F

Manufacturer:

SUMITOMO

File Size:

198.33kb

Download:

📄 Datasheet

Description:

X / ku-band internally matched fet. The FLM1011-15F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in
