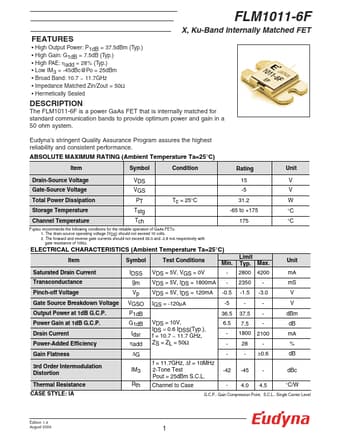

FLM1011-6F Datasheet, Fet, SUMITOMO

FLM1011-6F Features

• Fet
• High Output Power: P1dB = 37.5dBm (Typ.) High Gain: G1dB = 7.5dB (Typ.) High PAE: ηadd = 28% (Typ.) Low IM3 = -45dB

PDF File Details

Part number:

FLM1011-6F

Manufacturer:

SUMITOMO

File Size:

293.46kb

Download:

📄 Datasheet

Description:

X / ku-band internally matched fet. The FLM1011-6F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a
