FLM1011-3F Datasheet, fet equivalent, SUMITOMO

FLM1011-3F Features

• Fet
• High Output Power: P1dB = 35.0dBm (Typ.) High Gain: G1dB = 7.5dB (Typ.) High PAE: ηadd = 29% (Typ.) Low IM3 = -46dB

PDF File Details

Part number:

FLM1011-3F

Manufacturer:

SUMITOMO

File Size:

303.24kb

Download:

📄 Datasheet

Description:

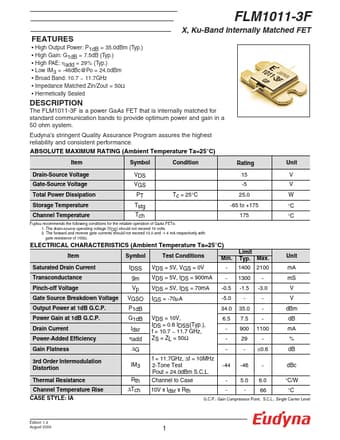

X / ku-band internally matched fet. The FLM1011-3F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a
