SPE0531

Single-Line ESD Protection Array

SPE0531 Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)

* Protects single I/O lines

* Working voltage: 5V

* Low leakage current

* Low operating and clamping voltages PIN CONFIGURATION ( SOD-523 ) PART MARKING 20

SPE0531 General Description

The SPE0531 are designed by TVS bi-direction device that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0531 will protect single line, and may be used on line where the signal polarities swing ab.

SPE0531 Datasheet (365.22 KB)

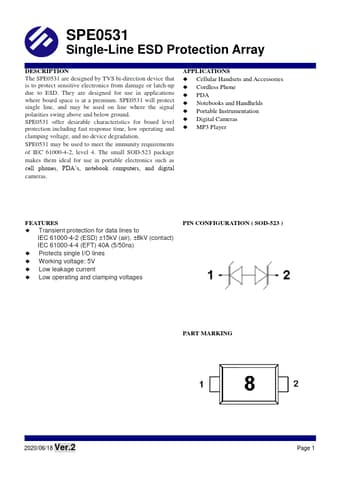

Preview of SPE0531 PDF

Datasheet Details

Part number:

SPE0531

Manufacturer:

SYNC POWER

File Size:

365.22 KB

Description:

Single-line esd protection array.
