SPE0535

5-Line ESD Protection Array

SPE0535 Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)

* Protects five I/O lines

* Working voltage: 5V

* Low leakage current

* Low operating and clamping voltages PIN CONFIGURATION ( SOT-363 / SC-70-6L ) PART MA

SPE0535 General Description

The SPE0535 are designed by TVS array that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0535 will protect up to five lines, and may be used on lines where the signal polarities swing above and .

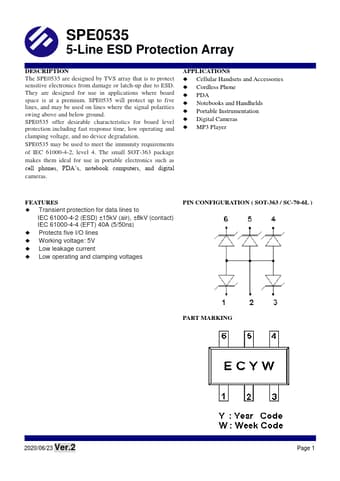

SPE0535 Datasheet (373.51 KB)

Preview of SPE0535 PDF

Datasheet Details

Part number:

SPE0535

Manufacturer:

SYNC POWER

File Size:

373.51 KB

Description:

5-line esd protection array.
