SPE0534

4-Line ESD Protection Array

SPE0534 Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)

* Protects four I/O lines

* Working voltage: 5V

* Low leakage current

* Low operating and clamping voltages PIN CONFIGURATION ( SOT-363 / SC-70-6L ) PART MA

SPE0534 General Description

The SPE0534 are designed by TVS array that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0534 will protect up to four line, and may be used on lines where the signal polarities swing above and b.

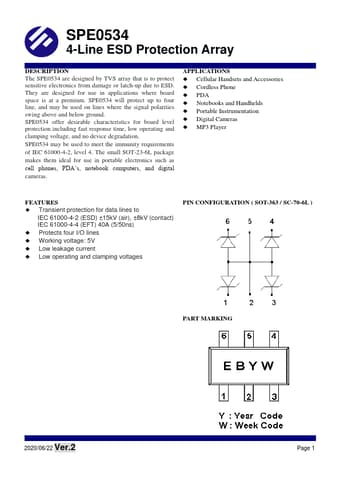

SPE0534 Datasheet (371.94 KB)

Preview of SPE0534 PDF

Datasheet Details

Part number:

SPE0534

Manufacturer:

SYNC POWER

File Size:

371.94 KB

Description:

4-line esd protection array.
