STU3525NLS, N-Channel Logic Level E nhancement Mode Field Effect Transistor

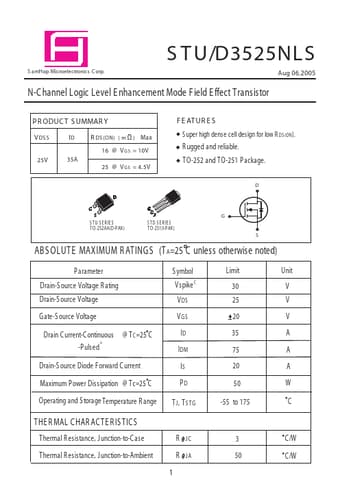

www.DataSheet4U.com S T U/D3525NLS S amHop Microelectronics C orp.

Aug 06 , 2005 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 25V F E AT UR E S (mW) ID 35A R DS (ON) Max S uper high dense cell design for low R DS (ON ).

16 @ V G S = 10V 25 @ V G S = 4.5V R ugged and reliable.

TO-252 and TO-251 P ackage.

D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless othe
