KM29W16000ATS

2M x 8-Bit NAND Flash Memory

KM29W16000ATS Features

* Voltage Supply : 2.7V ~ 5.5V

* Organization - Memory Cell Array : (2M + 64K)bit x 8bit - Data Register : (256 + 8)bit x8bit

* Automatic Program and Erase - Page Program : (256 + 8)Byte - Block Erase : (4K + 128)Byte - Status Register

* 264-Byte Page Read Operation -

KM29W16000ATS General Description

The KM29W16000A is a 2M(2,097,152)x8bit NAND Flash Memory with a spare 64K(65,536)x8bit. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation programs the 264-byte page in typically 250µs and an erase operation can be performed in typic.

KM29W16000ATS Datasheet (246.68 KB)

Preview of KM29W16000ATS PDF

Datasheet Details

Part number:

KM29W16000ATS

Manufacturer:

Samsung Electronics

File Size:

246.68 KB

Description:

2m x 8-bit nand flash memory.

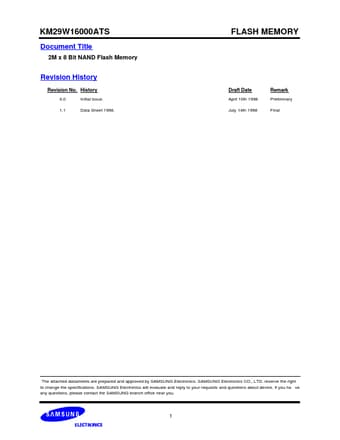

KM29W16000ATS Document Title 2M x 8 Bit NAND Flash Memory Revision History Revision No. History 0.0 Initial issue. 1.1 Data Sheet 1998. FLASH MEMORY .
