KM23C32205BSG

32M-Bit(2Mx16 / 1Mx32) CMOS Mask ROM

KM23C32205BSG Features

* Switchable organization 2,097,152 x 16(word mode) 1,048,576 x 32(double word mode)

* Fast access time Random Access : 100ns(Max.) Page Access : 30ns(Max.)

* 4 double words/ 8 words page access

* Current consumption Operating : 150mA(Max.) Standby : 50µA(Max.)

KM23C32205BSG General Description

The KM23C32205BSG is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 2,097,152x16 bit(word mode) or as 1,048,576x32 bit(double word mode) depending on WORD voltage level.(See mode selection table) This device includes page read m.

KM23C32205BSG Datasheet (94.08 KB)

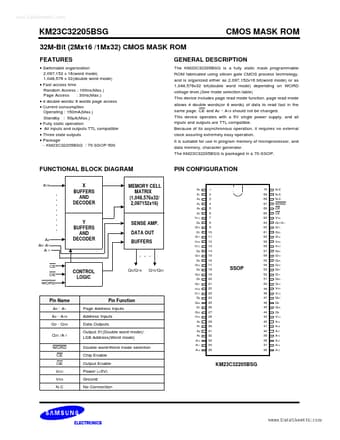

Preview of KM23C32205BSG PDF

Datasheet Details

Part number:

KM23C32205BSG

Manufacturer:

Samsung Semiconductor

File Size:

94.08 KB

Description:

32m-bit(2mx16 / 1mx32) cmos mask rom.
