KM23C4000DTY 4M-Bit (512Kx8) CMOS MASK ROM

The KM23C4000D(E)TY is a fully static mask programmable ROM organized 524,288 x 8bit. It is fabricated using silicon gate CMOS process technology. This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible. Because of its asynchronous operation, it requires no .

KM23C4000DTY Features

* 524,288 x 8 bit organization

* Access time : 80ns(Max.)

* Supply voltage : single +5V

* Current consumption Operating : 50mA(Max.) Standby : 50µA(Max.)

* Fully static operation

* All inputs and outputs TTL compatible

* Three state outputs

KM23C4000DTY-Samsungsemiconductor.pdf

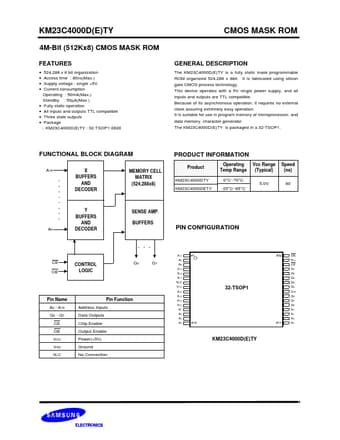

KM23C4000DTY Datasheet Preview — Preview of KM23C4000DTY PDF

Datasheet Details

Part number:

KM23C4000DTY

Manufacturer:

Samsung semiconductor

File Size:

68.46 KB

Description:

4m-bit (512kx8) cmos mask rom.
