KM23C32000CET 32M-Bit (4Mx8 / 2Mx16) CMOS Mask ROM

The KM23C32000C(E)T is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 4,194,304 x 8 bit(byte mode) or as 2,097,152 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table) This device operates with a 5V sing.

KM23C32000CET Features

* Switchable organization 4,194,304x8(byte mode) 2,097,152x16(word mode)

* Fast access time : 100ns(Max.)

* Supply voltage : single +5V

* Current consumption Operating : 50mA(Max.) Standby : 50µA(Max.)

* Fully static operation

* All inputs and outputs

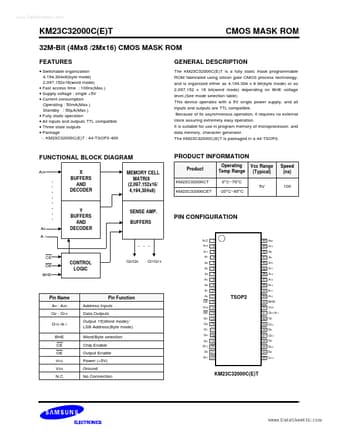

KM23C32000CT_SamsungSemiconductor.pdf

KM23C32000CET Datasheet Preview — This datasheet PDF includes multiple part numbers: KM23C32000CET, KM23C32000CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KM23C32000CET, KM23C32000CT

Manufacturer:

Samsung Semiconductor

File Size:

81.40 KB

Description:

32m-bit (4mx8 / 2mx16) cmos mask rom.

Note:

This datasheet PDF includes multiple part numbers: KM23C32000CET, KM23C32000CT.
Please refer to the document for exact specifications by model.
