KM23C4000D

4M-Bit (512Kx8) CMOS MASK ROM

KM23C4000D Features

* 524,288x8 bit organization

* Access time : 80ns(Max.)

* Supply voltage : single +5V

* Current consumption Operating : 50mA(Max.) Standby : 50µA(Max.)

* Fully static operation

* All inputs and outputs TTL compatible

* Three state outputs

KM23C4000D General Description

The KM23C4000D(G) is a fully static mask programmable ROM organized 524,288 x 8 bit. It is fabricated using silicon gate CMOS process technology. This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible. Because of its asynchronous operation, it requires no e.

KM23C4000D Datasheet (88.50 KB)

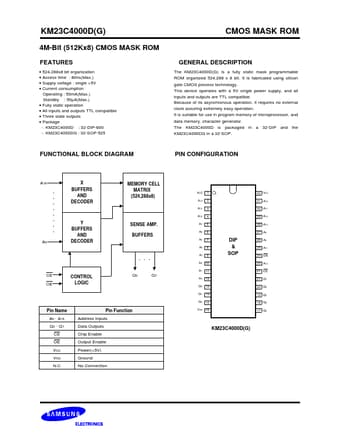

Preview of KM23C4000D PDF

Datasheet Details

Part number:

KM23C4000D

Manufacturer:

Samsung semiconductor

File Size:

88.50 KB

Description:

4m-bit (512kx8) cmos mask rom.
