KM23C32000C

32M-Bit (4Mx8 / 2Mx16) CMOS Mask ROM

KM23C32000C Features

* 2,097,152x16 bit organization

* Fast access time : 100ns(Max.)

* Supply voltage : single +5V

* Current consumption Operating : 50mA(Max.) Standby : 50 µA(Max.)

* Fully static operation

* All inputs and outputs TTL compatible

* Three state out

KM23C32000C General Description

The KM23C32000C is a fully static mask programmable ROM organized 2,097,152x16 bit. It is fabricated using silicon-gate CMOS process technology. This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible. Because of its asynchronous operation, it requires no ex.

KM23C32000C Datasheet (82.64 KB)

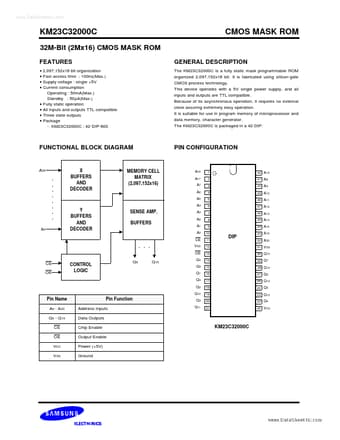

Preview of KM23C32000C PDF

Datasheet Details

Part number:

KM23C32000C

Manufacturer:

Samsung Semiconductor

File Size:

82.64 KB

Description:

32m-bit (4mx8 / 2mx16) cmos mask rom.
