KM23C32000CG

32M-Bit (4Mx8 / 2Mx16) CMOS Mask ROM

KM23C32000CG Features

* Switchable organization 4,194,304x8(byte mode) 2,097,152x16(word mode)

* Fast access time : 100ns(Max.)

* Supply voltage : single +5V

* Current consumption Operating : 50mA(Max.) Standby : 50µA(Max.)

* Fully static operation

* All inputs and outputs

KM23C32000CG General Description

The KM23C32000CG is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 4,194,304x8 bit(byte mode) or as 2,097,152x16 bit(word mode) depending on BHE voltage level.(See mode selection table) This device operates with a 5V single powe.

KM23C32000CG Datasheet (81.34 KB)

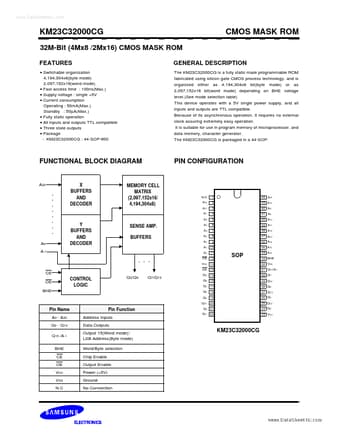

Preview of KM23C32000CG PDF

Datasheet Details

Part number:

KM23C32000CG

Manufacturer:

Samsung Semiconductor

File Size:

81.34 KB

Description:

32m-bit (4mx8 / 2mx16) cmos mask rom.
