K4S561632E-NC60

SDRAM 256Mb E-die

K4S561632E-NC60 Datasheet (207.41 KB)

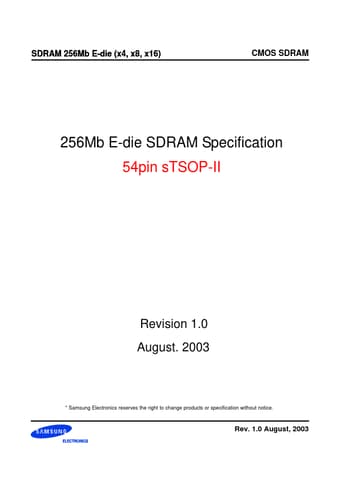

Preview of K4S561632E-NC60 PDF Datasheet

Datasheet Details

Part number:

K4S561632E-NC60

Manufacturer:

Samsung semiconductor

File Size:

207.41 KB

Description:

Sdram 256mb e-die

K4S561632E-NC60 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S561632E-NC60 General Description

The K4S560432E / K4S560832E / K4S561632E is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 16,785,216 / 4 x 8,392,608 / 4 x 4,196,304 words by 4bits, fabricated with SAMSUNG's high performance CMOS technology. Synchronous design allows precise cycle control with the use of .
