K4S640832H-TL75, 64Mb H-die SDRAM Specification

SDRAM 64Mb H-die (x4, x8, x16) CMOS SDRAM 64Mb H-die SDRAM Specification Revision 1.4 November 2003 * Samsung Electronics reserves the right t.
Rev.

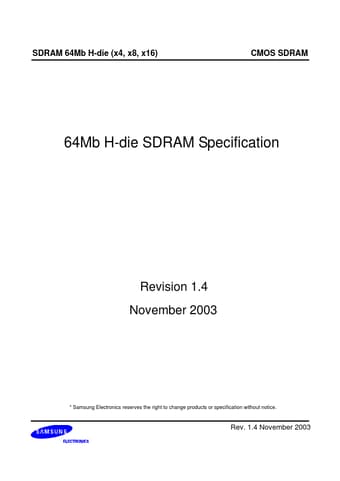

datasheet Preview Page 1 from Datasheet4u.com

K4S640832H-TL75_Samsungsemiconductor.pdf

K4S640832H-TL75 Datasheet Preview — Preview of K4S640832H-TL75 PDF

Datasheet Details

Part number:

K4S640832H-TL75

Manufacturer:

Samsung semiconductor

File Size:

144.25 KB

Description:

64Mb H-die SDRAM Specification

Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

Applications

* Ordering Information Part No. K4S640432H-TC(L)75 K4S640832H-TC(L)75 K4S641632H-TC(L)60 K4S641632H-TC(L)70 K4S641632H-TC(L)75 4Mb x 16 Orgainization 16Mb x 4 8Mb x 8 Max Freq. 133MHz(CL=3) 133MHz(CL=3) 166MHz(CL=3) 143MHz(CL=3) 133MHz(CL=3) LVTTL 54pin TSOP(II) Interface Package Rev. 1.4 November
