K4S643232H-TC-L70

64Mb H-die (x32) SDRAM

K4S643232H-TC-L70 Datasheet (115.47 KB)

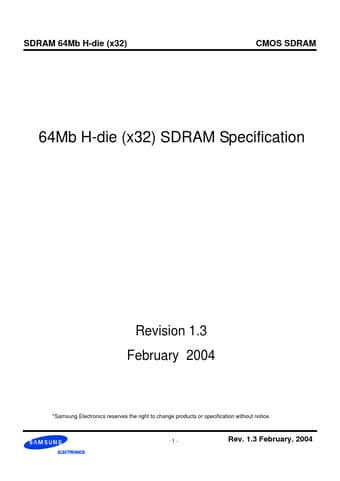

Preview of K4S643232H-TC-L70 PDF Datasheet

Datasheet Details

Part number:

K4S643232H-TC-L70

Manufacturer:

Samsung

File Size:

115.47 KB

Description:

64mb h-die (x32) sdram

K4S643232H-TC-L70 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S643232H-TC-L70 General Description

The K4S643232H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock c.
