K4S643232H-UC-L60

2M x 32 SDRAM

K4S643232H-UC-L60 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S643232H-UC-L60 General Description

The K4S643232H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock c.

K4S643232H-UC-L60 Datasheet (407.31 KB)

Preview of K4S643232H-UC-L60 PDF

Datasheet Details

Part number:

K4S643232H-UC-L60

Manufacturer:

Samsung

File Size:

407.31 KB

Description:

2m x 32 sdram.

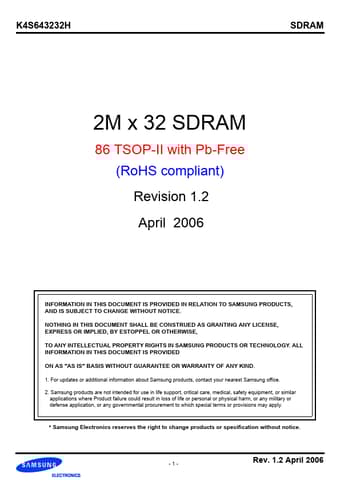

K4S643232H SDRAM 2M x 32 SDRAM 86 TSOP-II with Pb-Free (RoHS compliant) Revision 1.2 April 2006 INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION.
