K4S643232H-UC-L50, K4S643232H-UC-L70 Datasheet - Samsung

K4S643232H-UC-L50 2M x 32 SDRAM

The K4S643232H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock c.

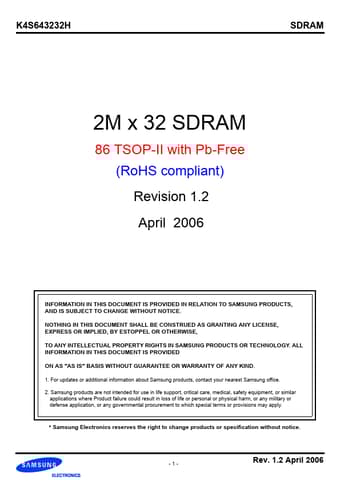

K4S643232H SDRAM 2M x 32 SDRAM 86 TSOP-II with Pb-Free (RoHS compliant) Revision 1.2 April 2006 INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY.

K4S643232H-UC-L50 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S643232H-UC-L70-Samsung.pdf

This datasheet PDF includes multiple part numbers: K4S643232H-UC-L50, K4S643232H-UC-L70. Please refer to the document for exact specifications by model.
K4S643232H-UC-L50 Datasheet Preview Page 2 K4S643232H-UC-L50 Datasheet Preview Page 3

Datasheet Details

Part number:

K4S643232H-UC-L50, K4S643232H-UC-L70

Manufacturer:

Samsung

File Size:

407.31 KB

Description:

2m x 32 sdram.

Note:

This datasheet PDF includes multiple part numbers: K4S643232H-UC-L50, K4S643232H-UC-L70.
Please refer to the document for exact specifications by model.
