K4S641632H-TC75, K4S - 64Mb H-die SDRAM Specification

Samsung semiconductor

📥 Download Datasheet

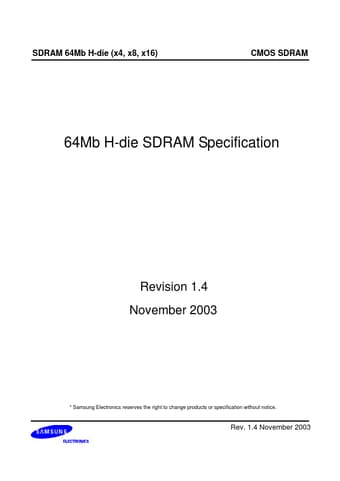

K4S641632H-TC75 Datasheet Preview — This datasheet PDF includes multiple part numbers: K4S641632H-TC75, K4S. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: K4S641632H-TC75, K4S
Manufacturer: Samsung semiconductor
File Size: 144.25 KB
Datasheet: K4S-64163.pdf
Description: 64Mb H-die SDRAM Specification
Note: This datasheet PDF includes multiple part numbers: K4S641632H-TC75, K4S.
Please refer to the document for exact specifications by model.

K4S641632H-TC75 Product details

Description

Rev.

Features

JEDEC standard 3.3V power supply.
LVTTL compatible with multiplexed address.
Four banks operation.
MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave).
All inputs are sampled at the positive going edge of the system clock.
Burst read single-bit write operation.
DQM (x4,x8) & L(U)DQM (x16) for masking.
Auto & self refresh.
64ms r.
