K4S641632H-UC75, K4S641632H-UC60 Datasheet - Samsung semiconductor

K4S641632H-UC75 64Mb H-die SDRAM Specification 54 TSOP-II

The K4S640432H / K4S640832H / K4S641632H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 4,194,304 words by 4 bits, / 4 x 2,097,152 words by 8 bits, / 4 x 1,048,576 words by 16 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows prec.

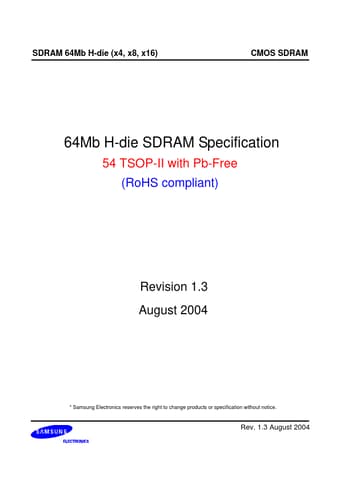

SDRAM 64Mb H-die (x4, x8, x16) CMOS SDRAM 64Mb H-die SDRAM Specification 54 TSOP-II with Pb-Free (RoHS compliant) Revision 1.3 August 2004 Samsung Electronics reserves the right to change products or specification without notice. Rev. 1.3 August 2004 SDRAM 64Mb H-die (x4, x8, x16) Revision History Revision 1.0 (September, 2003) Finalized CMOS SDRAM Revision 1.1 (October, 2003) Deleted speed -7C and AC parameter notes 5. Revision 1.2 (May, 2004) Added Note 5. se.

K4S641632H-UC75 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S641632H-UC60_Samsungsemiconductor.pdf

This datasheet PDF includes multiple part numbers: K4S641632H-UC75, K4S641632H-UC60. Please refer to the document for exact specifications by model.
K4S641632H-UC75 Datasheet Preview Page 2 K4S641632H-UC75 Datasheet Preview Page 3

Datasheet Details

Part number:

K4S641632H-UC75, K4S641632H-UC60

Manufacturer:

Samsung semiconductor

File Size:

146.34 KB

Description:

64mb h-die sdram specification 54 tsop-ii.

Note:

This datasheet PDF includes multiple part numbers: K4S641632H-UC75, K4S641632H-UC60.
Please refer to the document for exact specifications by model.
