K4S641632H-UCL75

64Mb H-die SDRAM Specification 54 TSOP-II

K4S641632H-UCL75 Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)

* All inputs are

K4S641632H-UCL75 General Description

The K4S640432H / K4S640832H / K4S641632H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 4,194,304 words by 4 bits, / 4 x 2,097,152 words by 8 bits, / 4 x 1,048,576 words by 16 bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous design allows prec.

K4S641632H-UCL75 Datasheet (146.34 KB)

Preview of K4S641632H-UCL75 PDF

Datasheet Details

Part number:

K4S641632H-UCL75

Manufacturer:

Samsung semiconductor

File Size:

146.34 KB

Description:

64mb h-die sdram specification 54 tsop-ii.

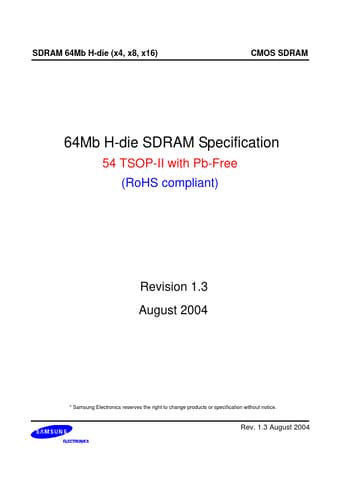

SDRAM 64Mb H-die (x4, x8, x16) CMOS SDRAM 64Mb H-die SDRAM Specification 54 TSOP-II with Pb-Free (RoHS compliant) Revision 1.3 August 2004
* S.
