K6R1008C1C-C10 Datasheet - Samsung semiconductor

K6R1008C1C-C10, 128Kx8 Bit High-Speed CMOS Static RAM(5V Operating). Operated at Commercial and Industrial Temperature Ranges.

PRELIMINARY K6R1008C1C-C/C-L, K6R1008C1C-I/C-P Document Title 128Kx8 Bit High-Speed CMOS Static RAM(5V Operating).Operated at Commercial and Industri.
The K6R1008C1C is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits.

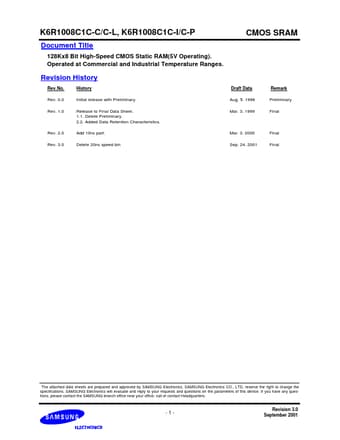

datasheet Preview Page 1 from Datasheet4u.com

K6R1008C1C-C10_Samsungsemiconductor.pdf

K6R1008C1C-C10 Datasheet Preview — Preview of K6R1008C1C-C10 PDF

Datasheet Details

Part number:

K6R1008C1C-C10

Manufacturer:

Samsung semiconductor

File Size:

131.65 KB

Description:

128Kx8 Bit High-Speed CMOS Static RAM(5V Operating). Operated at Commercial and Industrial Temperature Ranges.

Features

* Fast Access Time 10,12,15ns(Max. )
* Low Power Dissipation Standby (TTL) : 30mA(Max. ) (CMOS) : 5mA(Max. ) 0.5mA(Max. ) L-ver. only Operating K6R1008C1C-10 : 80mA(Max. ) K6R1008C1C-12 : 75mA(Max. ) K6R1008C1C-15 : 73mA(Max. )
* Single 5.0V±10% Power Supply
* TTL Compatible

Applications

* The K6R1008C1C is packaged in a 400mil 32-pin plastic SOJ or TSOP2 forward. ORDERING INFORMATION K6R1008C1C-C10/C12/C15 K6R1008C1C-I10/I12/I15 Commercial Temp. Industrial Temp. PIN CONFIGURATION (Top View) A0 1 2 3 4 5 6 7 8 9 32 A16 31 A15 30 A14 29 A13 28 OE 27 I/O8 26 I/O7 FUNCTIONAL BLOCK
