K6R4016C1D - CMOS SRAM

Description

The K6R4016C1D is a 4,194,304-bit high-speed Static Random Access Memory organized as 262,144 words by 16 bits.

The K6R4016C1D uses 16 common input and output lines and has an output enable pin which operates faster than address access time at read cycle.

Features

  • Fast Access Time 10ns(Max. ).
  • Low Power Dissipation Standby (TTL) : 20mA(Max. ) (CMOS) : 5mA(Max. ) Operating K6R4016C1D-10 : 65mA(Max. ).
  • Single 5.0V± 10 % Power Supply.
  • TTL Compatible Inputs and Outputs.
  • Fully Static Operation - No Clock or Refresh required.
  • Three State Outputs.
  • Center Power/Ground Pin Configuration.
  • Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16.
  • Standard Pin Configuration K6R4016C1D-J : 44-S.

📥 Download Datasheet

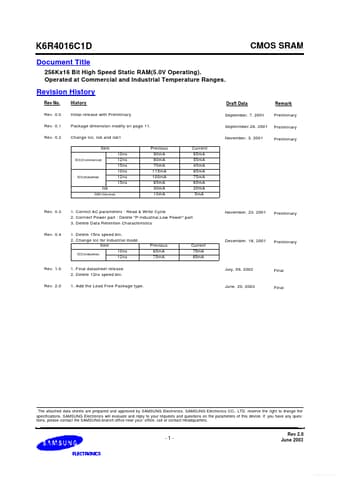

Datasheet preview – K6R4016C1D
