K6R4008C1C - 512K x 8bit High Speed Static CMOS SRAM

Datasheet Summary

Description

The K6R4008C1C is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits.

The K6R4008C1C uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle.

Features

  • Fast Access Time 10,12,15,20ns(Max. ).
  • Low Power Dissipation Standby (TTL) : 60mA(Max. ) (CMOS) : 10mA(Max. ) Operating K6R4008C1C-10 : 170mA(Max. ) K6R4008C1C-12 : 160mA(Max. ) K6R4008C1C-15 : 150mA(Max. ) K6R4008C1C-20 : 140mA(Max. ).
  • Single 5.0V±10% Power Supply.
  • TTL Compatible Inputs and Outputs.
  • I/O Compatible with 3.3V Device.
  • Fully Static Operation - No Clock or Refresh required.
  • Three State Outputs.
  • Center Power/Ground Pin.

📥 Download Datasheet

Datasheet preview – K6R4008C1C

Datasheet Details

Part number K6R4008C1C
Manufacturer Samsung
File Size 183.32 KB
Description 512K x 8bit High Speed Static CMOS SRAM
Datasheet download datasheet K6R4008C1C Datasheet
Additional preview pages of the K6R4008C1C datasheet.

📁 Similar Datasheet

  • K6R4008C1D - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1B - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1B-C - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1B-I - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1B-L - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1B-P - 512K x8 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4008V1C - 512Kx8 Bit High Speed Static (Samsung semiconductor)
  • K6R4008V1D - 512Kx8 Bit High Speed Static RAM(3.3V Operating). Operated at Commercial and Industrial Temperature Ranges. (Samsung semiconductor)
  • K6R4004C1C-C - 1Mx4 Bit High Speed Static RAM (Samsung semiconductor)
  • K6R4004C1C-E - 1Mx4 Bit High Speed Static RAM (Samsung semiconductor)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

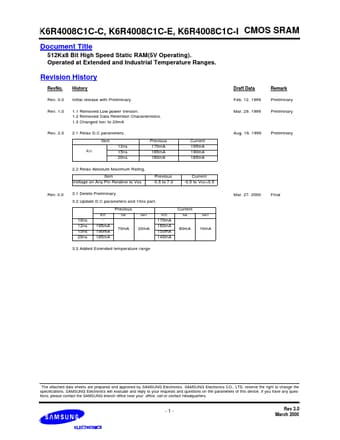

PRELIMINARY K6R4008C1C-C, K6R4008C1C-E, K6R4008C1C-I CMOS SRAM Document Title 512Kx8 Bit High Speed Static RAM(5V Operating). Operated at Extended and Industrial Temperature Ranges. Revision History RevNo. Rev. 0.0 Rev. 1.0 History Initial release with Preliminary. 1.1 Removed Low power Version. 1.2 Removed Data Retention Characteristics. 1.3 Changed ISB1 to 20mA 2.1 Relax D.C parameters. Item ICC 12ns 15ns 20ns Previous 170mA 165mA 160mA Current 195mA 190mA 185mA Draft Data Feb. 12. 1999 Mar. 29. 1999 Remark Preliminary Preliminary Rev. 2.0 Aug. 19. 1999 Preliminary 2.2 Relax Absolute Maximum Rating. Item Voltage on Any Pin Relative to Vss Rev. 3.0 3.1 Delete Preliminary 3.2 Update D.C parameters and 10ns part.
