K9LBG08U0D 4G x 8 Bit/ 8G x 8 Bit/ 16G x 8 Bit NAND Flash Memory

Offered in 4Gx8bit, the K9LBG08U0D is a 32G-bit NAND Flash Memory with spare 1,744M-bit. The device is offered in 3.3V Vcc. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation can be performed in typical 800µs on the 4,314-byte page an.

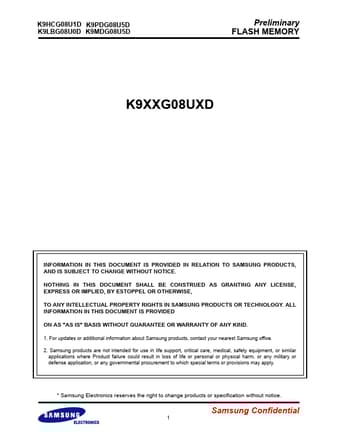

www.DataSheet.co.kr K9HCG08U1D K9PDG08U5D K9LBG08U0D K9MDG08U5D Preliminary FLASH MEMORY K9XXG08UXD INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY .

K9LBG08U0D Features

* Voltage Supply - 3.3V Device : 2.7V ~ 3.6V

* Organization - Memory Cell Array : (2G + 109M) x 8bit - Data Register : (4K + 218) x 8bit

* Automatic Program and Erase - Page Program : (4K + 218)Byte - Block Erase : (512K + 27.25K)Byte

* Page Read Operation - Page Size
