K9LAG08U1A - FLASH MEMORY

Samsung

📥 Download Datasheet

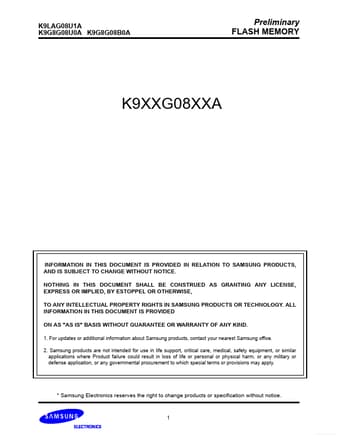

K9LAG08U1A Datasheet Preview — Preview of K9LAG08U1A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	K9LAG08U1A
Manufacturer	Samsung
File Size	1.17 MB
Description	FLASH MEMORY
Datasheet	K9LAG08U1A-Samsung.pdf

K9LAG08U1A Product details

Description

Offered in 1Gx8bit, the K9G8G08X0A is a 8G-bit NAND Flash Memory with spare 256M-bit.

Features

Voltage Supply - 2.7V Device(K9G8G08B0A) : 2.5V ~ 2.9V - 3.3V Device(K9G8G08U0A) : 2.7V ~ 3.6V.
Organization - Memory Cell Array : (1G + 32M) x 8bit - Data Register : (2K + 64) x8bit.
Automatic Program and Erase - Page Program : (2K + 64)Byte - Block Erase : (256K + 8K)Byte.
Page Read Operation - Page Size : (2K + 64)Byte - Random Read : 60µs(Max. ) - Serial Access : 25ns(Min. ).
Memory Cell : 2bit / Memory Cell.
Fast Write Cycle Time - Progra.
