DS065010S3

SiC Schottky Barrier Diode

DS065010S3 General Description

VRRM 650 V IF(135℃) 18 A QC 29 nC DFN 8
*8-4L Device SDS065J010S3 Package DFN 8
*8-4L Marking DS065010S3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =.

DS065010S3 Datasheet (249.82 KB)

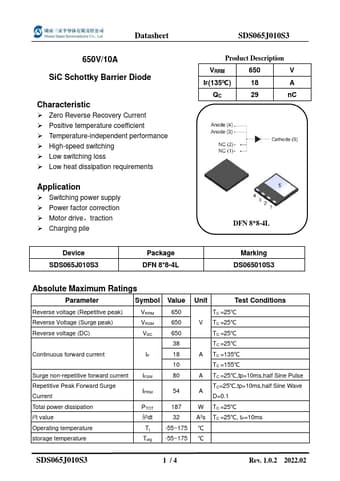

DS065010S3 Datasheet Preview — Preview of DS065010S3 PDF

Datasheet Details

Part number:

DS065010S3

Manufacturer:

Sanan

File Size:

249.82 KB

Description:

Sic schottky barrier diode.
Datasheet 650V/10A SiC Schottky Barrier Diode Characteristic

* Zero Reverse Recovery Current

* Positive temperature coefficient
