DS065016G3 - SiC Schottky Barrier Diode

📥 Download Datasheet

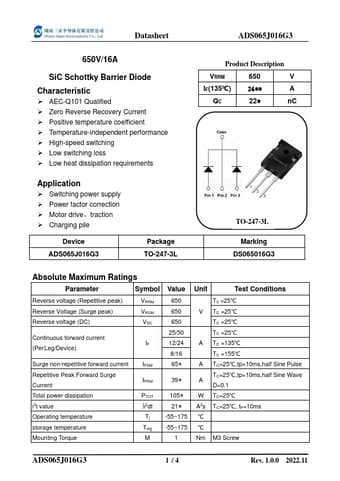

Preview of DS065016G3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DS065016G3
Manufacturer Sanan
File Size 288.81 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065016G3-Sanan.pdf

DS065016G3 Product details

Description

VRRM 650 V IF(135℃) 24 A QC 22 nC TO-247-3L Marking DS065016G3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) Continuous forward current (Per Leg/Device) Surge non-repetitive forward current Repetitive Peak Forward Surge Current Total power dissipation i2t value Operating temperature storage temperature Mounting Torque VRRM VRSM VDC IF IFSM IFRM PTOT ∫i2dt Tj T
