SMA4036 NPN Darlington

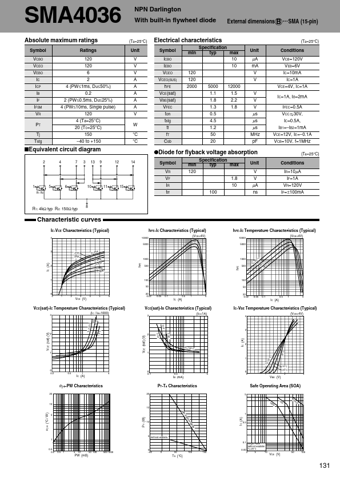

SMA4036 NPN Darlington With built-in flywheel diode External dimensions B SMA (15-pin) Absolute maximum ratings Symbol Ratings VCBO 120 VCEO 120 VEBO 6 IC 2 ICP 4 (PW≤1ms, Du≤50%) IB 0.2 IF 2 (PW≤0.5ms, Du≤25%) IFSM 4 (PW≤10ms, Single pulse) VR 120 4 (Ta=25°C) PT 20 (Tc=25°C) Tj 150 Tstg 40 to +150 Equivalent circuit diagram 2 4 7 3 13 9 12 (Ta=25°C) Unit V V V A A A A A V W °C °C 14 1 5 6 R1 R2 10 11 15 Elec.
