SMA4030 Datasheet - Sanken electric

SMA4030 PNP Darlington

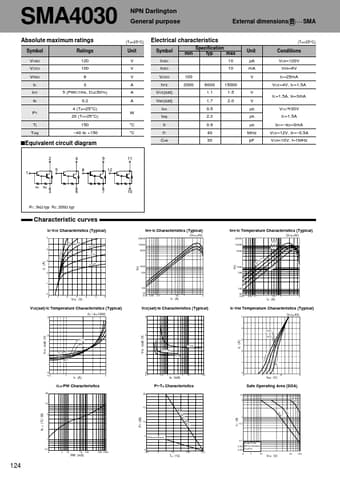

SMA4030 NPN Darlington General purpose External dimensions B SMA Absolute maximum ratings Symbol Ratings VCBO VCEO VEBO IC ICP IB PT Tj Tstg 120 100 6 3 5 (PW≤1ms, Du≤50%) 0.2 4 (Ta=25°C) 20 (Tc=25°C) 150 40 to +150 sEquivalent circuit diagram (Ta=25°C) Unit V V V A A A W °C °C Electrical characteristics Symbol Specification min typ max ICBO 10 IEBO 10 VCEO 100 hFE 2000 6000 15000 VCE(sat) 1.1 1.5 VBE(sat) 1.7 2.0 ton 0.5 tstg.
