STR-A6061MZ, STR-A6069MZ Off-Line PWM Controllers

Sanken

Description

Off-Line PWM Controllers with Integrated Power MOSFET STR-A6000MZ/HZ Series Data Sheet .
The STR-A6000MZ/HZ series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

📥 Download Datasheet

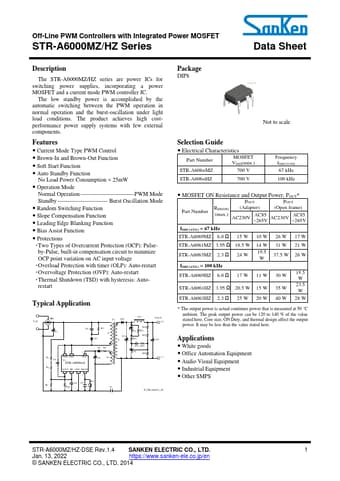

STR-A6061MZ Datasheet Preview — This datasheet PDF includes multiple part numbers: STR-A6061MZ, STR-A6069MZ. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STR-A6061MZ, STR-A6069MZ
Manufacturer: Sanken ↗
File Size: 580.75 KB
Datasheet: STR-A6069MZ-Sanken.pdf
Description: Off-Line PWM Controllers
Note: This datasheet PDF includes multiple part numbers: STR-A6061MZ, STR-A6069MZ.
Please refer to the document for exact specifications by model.

Features

* Current Mode Type PWM Control
* Brown-In and Brown-Out Function
* Soft Start Function
* Auto Standby Function No Load Power Consumption < 25mW
* Operation Mode Normal Operation

Applications

* White goods
* Office Automation Equipment
* Audio Visual Equipment
* Industrial Equipment
* Other SMPS STR-A6000MZ/HZ-DSE Rev.1.4 SANKEN ELECTRIC CO. , LTD. 1 Jan. 13, 2022 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2014 STR-A6000MZ/HZ
