STR-A6062HD, STR-A6000 - Off-Line PWM Controllers

Sanken

Datasheet Details

Part number	STR-A6062HD, STR-A6000
Manufacturer	Sanken ↗
File Size	611.79 KB
Description	Off-Line PWM Controllers
Datasheet	STR-A6000-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: STR-A6062HD, STR-A6000. Please refer to the document for exact specifications by model.

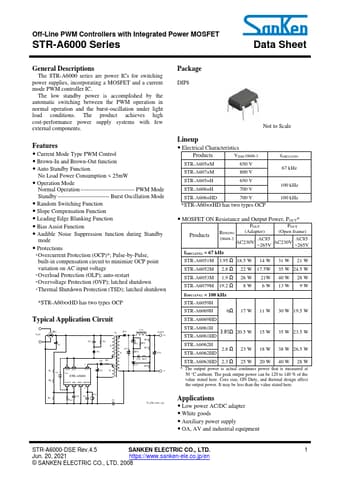

The STR-A6000 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Current Mode Type PWM Control.
Brown-In and Brown-Out function.
Auto Standby Function No Load Power Consumption < 25mW.
Operation Mode Normal Operation ---------------------------- PWM Mode Standby --------------------------- Burst Oscillation Mode.
Random Switching Function.
Slope Compensation Function.
Leading Edge Blanking Function.
Bias Assist Function.
Audible Noise Suppression function during Standby mode.
