STR-W6765 - Quasi-Resonant Topology Primary Switching Regulators

Product Overview

Sanken

Part number	STR-W6765
Manufacturer	Sanken
File Size	227.46 KB
Description	Quasi-Resonant Topology Primary Switching Regulators
Datasheet	STR-W6765 Datasheet

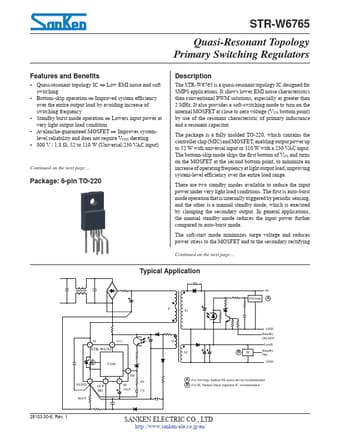

Additional preview pages of the STR-W6765 datasheet.

The STR-W6765 is a quasi-resonant topology IC designed for SMPS applications.

Quasi-resonant topology IC  Low EMI noise and soft switching.
Bottom-skip operation  Improved system efficiency over the entire output load by avoiding increase of switching frequency.
Standby burst mode operation  Lowers input power at very light output load condition.
Avalanche-guaranteed MOSFET  Improves systemlevel reliability and does not require VDSS derating.
800 V / 1.8 Ω, 52 to 110 W (Universal/230 VAC input) Continued on the next page… Package: 6-pin TO-22.
