STR6A161HVD Datasheet - Sanken

STR6A161HVD Off-Line PWM Controller

The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The operating mode of the IC automatically changes to green-mode or burst oscillation mode according to load in order to improve the all load efficiency. The product ach.

STR6A161HVD Features

* Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)

* Current Mode Type PWM Control

* Soft Start Function

* Adjustable Standby Operating Point No Load Power Consumption < 15

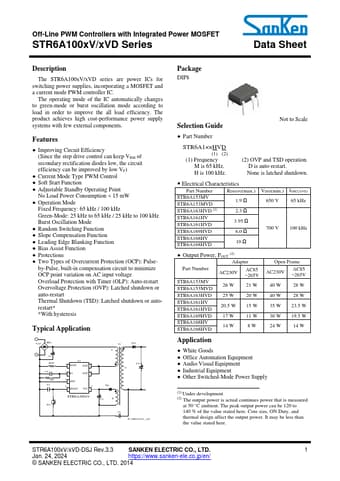

STR6A161HVD Datasheet (638.10 KB)
