STR6A168HVD, STR6A153MV Datasheet - Sanken

STR6A168HVD Off-Line PWM Controller

The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The operating mode of the IC automatically changes to green-mode or burst oscillation mode according to load in order to improve the all load efficiency. The product ach.

STR6A168HVD Features

* Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)

* Current Mode Type PWM Control

* Soft Start Function

* Adjustable Standby Operating Point No Load Power Consumption < 15

STR6A153MV-Sanken.pdf

This datasheet PDF includes multiple part numbers: STR6A168HVD, STR6A153MV. Please refer to the document for exact specifications by model.

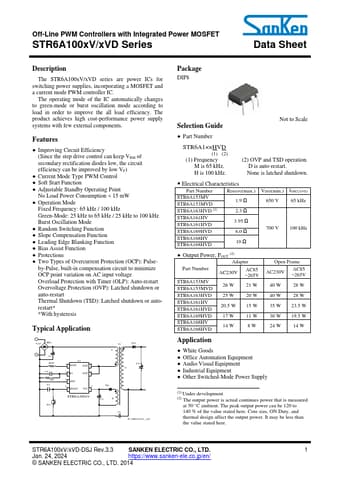

STR6A168HVD Datasheet Preview Page 2 STR6A168HVD Datasheet Preview Page 3

Datasheet Details

Part number:

STR6A168HVD, STR6A153MV

Manufacturer:

Sanken ↗

File Size:

638.10 KB

Description:

Off-line pwm controller.

Note:

This datasheet PDF includes multiple part numbers: STR6A168HVD, STR6A153MV.
Please refer to the document for exact specifications by model.
