Description

Off-Line PWM Controllers with Integrated Power MOSFET STR6A100xV/xVD Series Data Sheet .
The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

📥 Download Datasheet

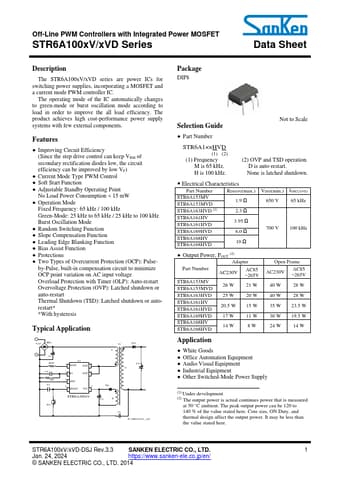

STR6A163HVD Datasheet Preview — This datasheet PDF includes multiple part numbers: STR6A163HVD, STR6A153MV. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STR6A163HVD, STR6A153MV
Manufacturer: Sanken ↗
File Size: 638.10 KB
Datasheet: STR6A153MV-Sanken.pdf
Description: Off-Line PWM Controller
Note: This datasheet PDF includes multiple part numbers: STR6A163HVD, STR6A153MV.
Please refer to the document for exact specifications by model.

Features

* Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* Soft Start Function
* Adjustable Standby Operating Point No Load Power Consumption < 15
