SRE100N065FSUD8 - 100A 650V Trench Fieldstop IGBT

SRE100N065FSUD8 Description

Datasheet 100A 650V Trench Fieldstop IGBT with anti-parallel diode SRE100N065FSUD8 General .
The SRE100N065FSUD8 is a Field Stop Trench IGBT with anti-parallel diode, which offers ultralow switching losses, high energy efficiency for switching.

SRE100N065FSUD8 Features

* High Breakdown Voltage to 650V
* Advanced Trench Fieldstop technology
* Ultra low Eoff
* High Ruggedness, Temperature Stability
* Easy Parallel Switching Capability due to Positive Temperature Coefficient in VCE(SAT)
* Low VCE(SAT)
* Enhanced Avalanche Capability Symbo

📥 Download Datasheet

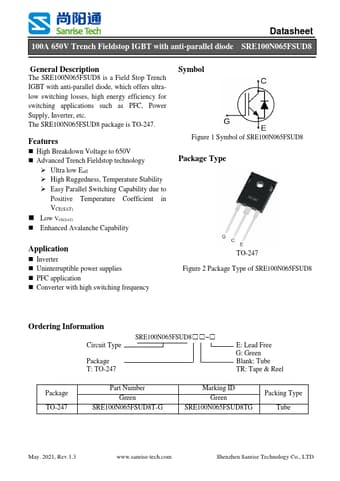

Preview of SRE100N065FSUD8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRE100N065FSUD8
Manufacturer
Sanrise
File Size
781.91 KB
Datasheet
SRE100N065FSUD8-Sanrise.pdf
Description
100A 650V Trench Fieldstop IGBT
