www.DataSheet4U.com Ordering number : ENN7257A Monolithic Digital IC LB11872H Three-Phase Brushless Motor Driver for Polygonal Mirror Motors Overview The LB11872H is a three-phase brushless motor driver developed for driving the motors used for the polygonal mirror in laser printers and similar applications.

It can implement, with a single IC chip, all the circuits required for polygonal mirror drive, including speed control and driver functions.

The LB11872H can implement motor drive within

LB11872H Features

* Three-phase bipolar current linear drive + midpoint control circuit

* PLL speed control circuit

* Speed is controlled by an external clock signal.

* Supports Hall FG operation.

* Built-in output saturation prevention circuit

* Phase lock detection ou

LB11872H_SanyoElectric.pdf

Preview of LB11872H PDF

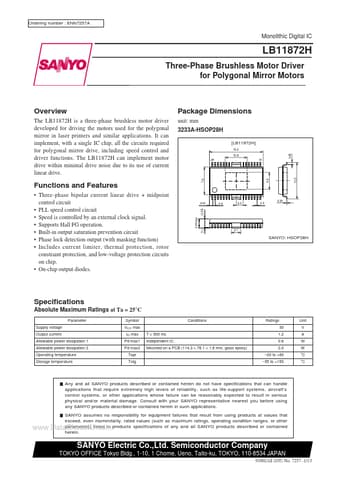

LB11872H Datasheet Preview Page 2 LB11872H Datasheet Preview Page 3
