2SA1380 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • High breakdown voltage : VCEO≥200V.
  • Small reverse transfer capacitance and excellent high-frequnecy characteristics : Cre=1.2pF (NPN), 1.7pF (PNP), VCB=30V.
  • Adoption of FBET process Package Dimensions unit:mm 2009B [2SA1380/2SC3502] 8.0 4.0 2.7 1.5 3.0 7.0 11.0 1.6 0.8 0.8 0.6 3.0 0.5 15.5 ( ) : 2SA1380 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Coll.

📥 Download Datasheet

Datasheet preview – 2SA1380

Datasheet Details

Part number 2SA1380
Manufacturer Sanyo Semicon Device
File Size 39.05 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SA1380 Datasheet
Additional preview pages of the 2SA1380 datasheet.

📁 Similar Datasheet

  • 2SA1380 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1381 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • 2SA1382 - TRANSISTOR (Toshiba Semiconductor)
  • 2SA1383 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1383 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1384 - SILICON PNP TRIPLE DIFFUSED TYPE TRANSISTOR (Toshiba Semiconductor)
  • 2SA1384 - PNP Transistors (Kexin)
  • 2SA1384 - Transistor (TY Semiconductor)
  • 2SA1385 - PNP Silicon Transistor (NEC)
  • 2SA1385-Z - PNP Silicon Transistor (NEC)
Other Datasheets by Sanyo Semicon Device
  • 2SA1381 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1317 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1318 - PNP/NPN Silicon Transistor
  • 2SA1319 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1331 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1338 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1339 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1348 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

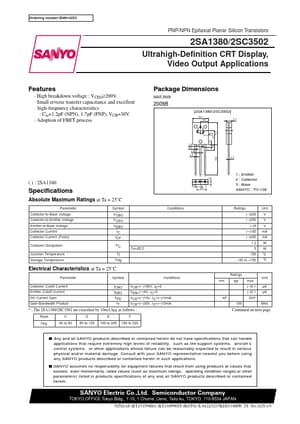

Ordering number:ENN1425C PNP/NPN Epitaxial Planar Silicon Transistors 2SA1380/2SC3502 Ultrahigh-Definition CRT Display, Video Output Applications Features · High breakdown voltage : VCEO≥200V. · Small reverse transfer capacitance and excellent high-frequnecy characteristics : Cre=1.2pF (NPN), 1.7pF (PNP), VCB=30V. · Adoption of FBET process Package Dimensions unit:mm 2009B [2SA1380/2SC3502] 8.0 4.0 2.7 1.5 3.0 7.0 11.0 1.6 0.8 0.8 0.6 3.0 0.5 15.
