* Low-saturation collector-to-emitter voltage : VCE(sat)=
* 0.4V max.
* Wide ASO leading to high resistance to breakdown.
* Micaless package facilitating mounting. Package Dimensions unit:mm 2041A [2SB1135/2SD1668] ( ) : 2SB1135 Specifications Absolute Maximum Ratings at Ta = 2
2SB1135
Sanyo Semicon Device
102.01 KB
Pnp transistor.
Ordering number:2094B

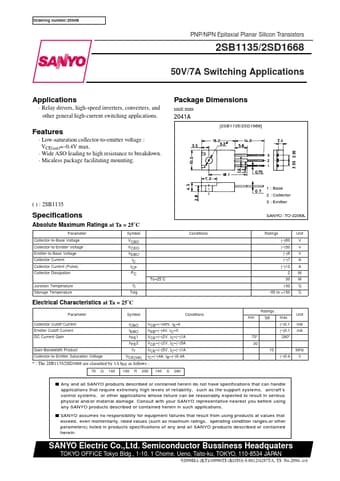

PNP/NPN Epitaxial Planar Silicon Transistors
2SB1135/2SD1668
50V/7A Switching Applications
Applications
* Relay drivers, h.
