2SB1142 Datasheet, Transistor, Sanyo Semicon Device

2SB1142 Features

  • Transistor
  • Adoption of FBET, MBIT processes.
  • Low saturation voltage.
  • Large current capacity and wide ASO. ( ) : 2SB1142 B : Base C : Collector E : Emitter SANYO : T

PDF File Details

Part number:

2SB1142

Manufacturer:

Sanyo Semicon Device

File Size:

166.56kb

Download:

📄 Datasheet

Description:

Pnp transistor.

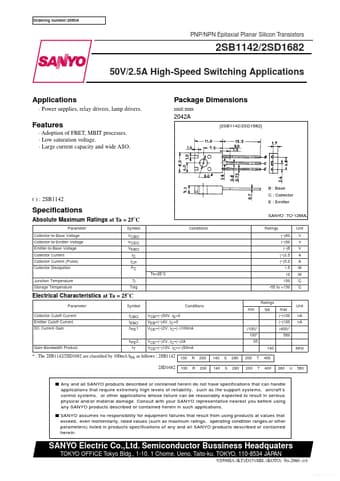

Datasheet Preview: 2SB1142 📥 Download PDF (166.56kb)
Page 2 of 2SB1142 Page 3 of 2SB1142

2SB1142 Application

  • Applications Applications
  • Power supplies, relay drivers, lamp drivers. Package Dimensions unit:mm 2042A [2SB1142/2SD1682] Features
