2SB1145 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SB1145

Manufacturer:

INCHANGE

File Size:

202.79kb

Download:

📄 Datasheet

Description:

Pnp transistor.

  • High DC Current Gain- : hFE= 2000(Min.)@IC= -1.5A
  • Low Collector Saturation Voltage- : VCE(sat)= -1.5V(Max)@IC= -1.5

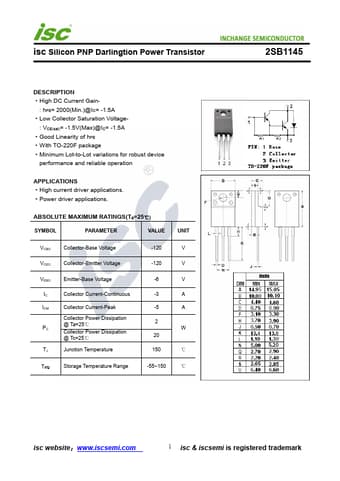

  • Datasheet Preview: 2SB1145 📥 Download PDF (202.79kb)
    Page 2 of 2SB1145

    2SB1145 Application

    • Applications
    • High current driver applications.
    • Power driver applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VA
