2SB1103 - PNP Transistor

2SB1103 Description

isc Silicon PNP Darlington Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min). High DC Current Gain- : hFE= 1000(Min)@ (VCE= -3V, IC= -4A). Minimum Lot-to-L.

2SB1103 Applications

* Designed for low frequency power amplifiers applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -8 A ICM Collector

📥 Download Datasheet

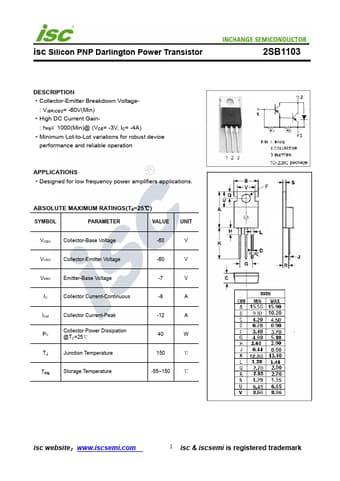

Preview of 2SB1103 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1103
Manufacturer
INCHANGE
File Size
210.40 KB
Datasheet
2SB1103-INCHANGE.pdf
Description
PNP Transistor
