2SC3952 Datasheet, transistor equivalent, Sanyo Semicon Device

2SC3952 Features

• Transistor
• High fT : fT=700MHz.
• High breakdown voltage : VCEO=70Vmin.
• Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=3.1pF/NPN,

PDF File Details

Part number:

2SC3952

Manufacturer:

Sanyo Semicon Device

File Size:

38.89kb

Download:

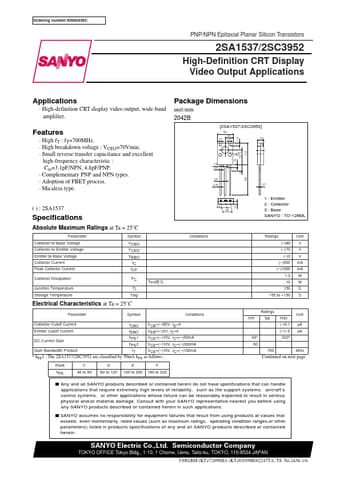

📄 Datasheet

Description:

Silicon npn transistor.

2SC3952 Application

• Applications Applications
• High-definition CRT display video output, wide-band amplifier. Package Dimensions unit:mm 2042B Features
