* Capable of being mounted easily because of onepoint fixing type plastic molded package (Interchangeable with TO-3).
* Wide ASO because of on-chip ballast resistance.
* Good depenedence of fT on current and excellent high frequency responce. Package Dimensions unit:mm 2022A [2SB817/2SD
2SD1047
Sanyo Semicon Device
123.26 KB
Npn triple diffused planar silicon transistors.
Ordering number:680F
PNP Epitaxial Planar Silicon Transistors NPN Triple Diffused Planar Silicon Transistors

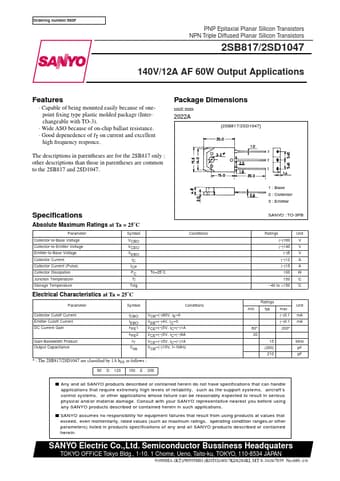

2SB817/2SD1047
140V/12A AF 60W Output Ap.
