2SD2202 - PNP/NPN Epitaxial Planar Silicon Transistors

2SD2202 Description

Ordering number:EN3249 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1454/2SD2202 High-Current Switching Applications .

2SD2202 Features

* Low collector-to-emitter saturation voltage.
* Large current capacity.
* Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1454/2SD2202] ( ) : 2SB1454 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta =

📥 Download Datasheet

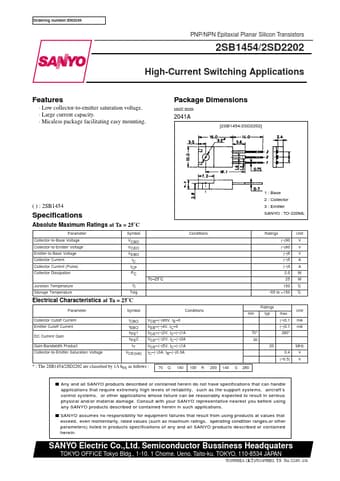

Preview of 2SD2202 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2202
Manufacturer
Sanyo Semicon Device
File Size
152.29 KB
Datasheet
2SD2202_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
